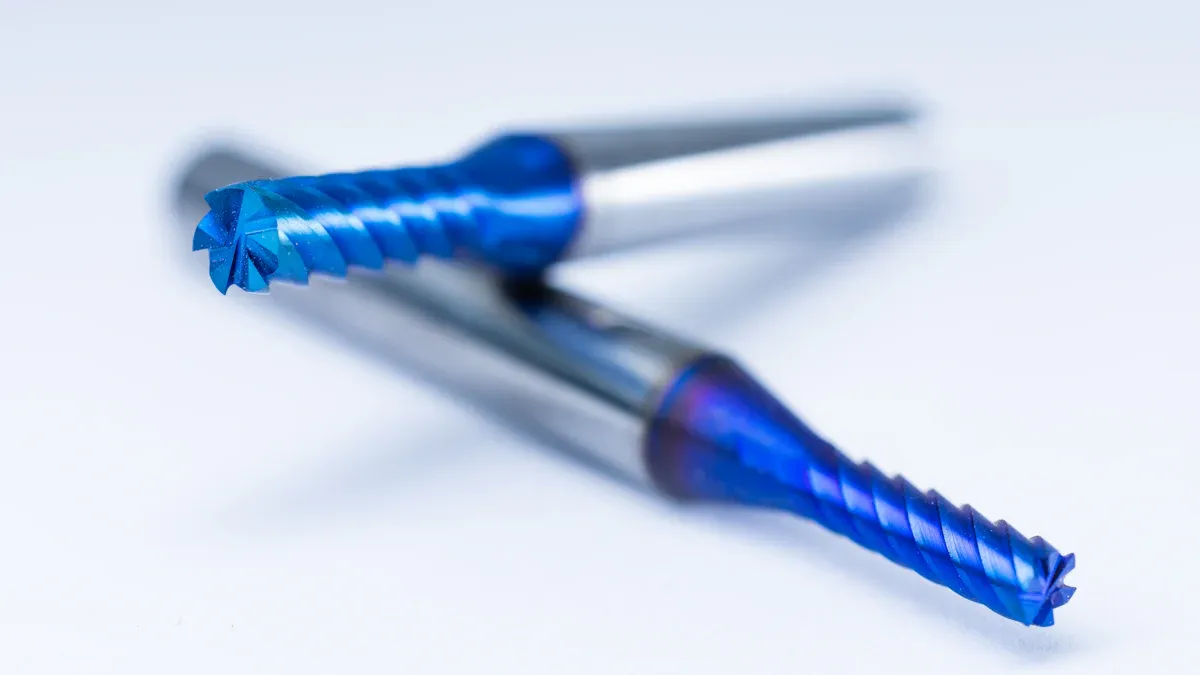

What is a milling cutter?

Milling Cutters serve as crucial rotary cutting tools. They function within milling machines to precisely remove material from a workpiece. This fundamental process allows manufacturers to shape raw materials. The tools' efficient operation is vital for producing diverse components. They are indispensable in modern machining.

Key Takeaways

• Milling cutters are important tools. They shape materials by removing parts. They are used in many industries.
• Different milling cutters exist. Each type has special features. These features help with different cutting jobs.
• Choosing the right cutter is key. Consider the material you cut. Also, think about the cutter's design and coatings.

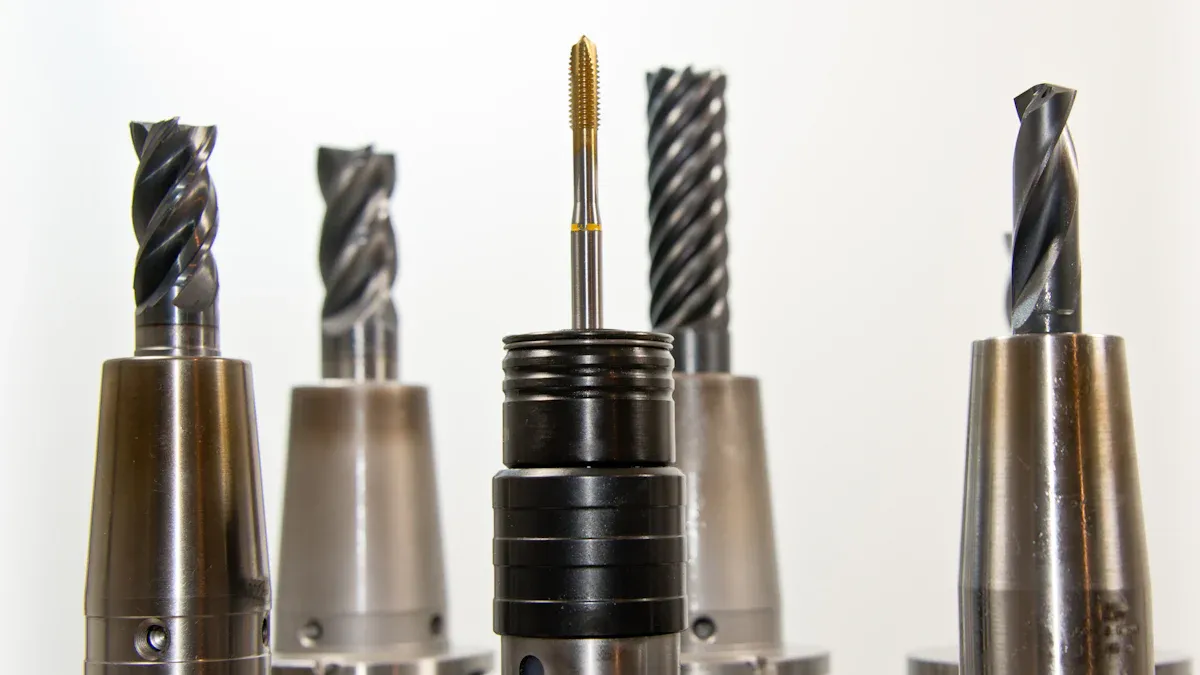

Understanding Milling Cutters: Features and Types

Key Features of Milling Cutters

Milling cutters possess specific design features that dictate their performance and suitability for various machining tasks. These features include their overall shape, the number and design of their flutes, and the material they comprise.

Key design elements define a milling cutter's operational characteristics. These include:

• Shape: Cutters come in various standard industrial shapes.
• Flutes/Teeth: The number of flutes, or teeth, directly affects the material removal rate. More teeth generally lead to faster material removal. Flutes are deep helical grooves, and the sharp blade along the edge forms the tooth.
• Helix Angle: Helical flutes allow the tooth to enter the material gradually. This design reduces vibration and improves both accuracy and surface quality. Finishing cutters often feature a higher rake angle, which means a tighter helix, for a superior finish. High helix angles work best for soft metals, while low helix angles suit hard or tough metals. A higher helix angle also enhances the shearing action, which reduces cutting forces and heat. This design improves chip ejection by lifting chips out and away from the workpiece. Conversely, a slow helix tool, typically less than 40°, can struggle with chip evacuation, potentially leading to a rough finish.
• Center Cutting: Some cutters can plunge straight down into material. Others can only cut at an angle. This capability depends on whether their teeth extend to the center of the end face.
• Roughing or Finishing Designation: Manufacturers design cutters for either removing large amounts of material (roughing) or achieving a good surface finish (finishing). Roughing cutters often have serrated teeth, while finishing cutters typically have more teeth.
• Coatings: Coatings like Polycrystalline Diamond (PCD) or Titanium Aluminum Nitride (TiAlN) significantly increase cutting speed and tool life. They also improve surface finish by reducing wear or preventing material adhesion. For example, TiAlN works well for aluminum.
• Shank:The shank is the non-fluted part that holds the tool. It varies in shape, such as round or Weldon Flat, and length, including stub, long, or extra-long, to fit Tool Holders and influence stability.

The material composition of a milling cutter significantly impacts its performance. High-Speed Steel (HSS) cutters are less expensive but have a shorter lifespan. Cemented carbide cutters are harder, last longer, and allow for faster operation. Cobalt-bearing HSS offers improved performance over regular HSS. Cutters can also consist of aluminum or steel with harder insert teeth to reduce cost. Special hard coatings like Polycrystalline Diamond (PCD) or Cubic Boron Nitride (CBN) enhance durability and tool life.

Milling cutters are measured and described by several key characteristics:

• Diameter: Measured across the cutter's center.
• Number of Flutes: The count of cutting edges.
• Cutting Edge Configuration: The specific design of the cutting edges.
• Material Composition: The type of material used to make the cutter.
• Shank Type: Such as straight or Weldon shanks.
• Mounting Type: For example, shell mill mounting.
• Intended Use: Like 'roughing end mill' or 'finishing end mill'.

Common Types of Milling Cutters

Several types of milling cutters are widely used in manufacturing for general-purpose tasks. End mills are among the most common, coming in various forms to suit different applications.

Square end mills are versatile tools. They feature sharp corners and are ideal for creating precise 90-degree angles and flat surfaces. Their applications include:

• Facing Operations: Machining flat surfaces on workpieces for precision.
• Slotting and Grooving: Creating channels or grooves with precise depth and width.
• Pocketing: Forming cavities with flat bottoms for component placement.
• Contour Milling: Shaping materials into complex forms, including intricate geometric shapes and 3D features.
• Finishing Operations: Refining surfaces to meet specific tolerances and aesthetic requirements.

Other common end mill types include ball nose end mills, which have a rounded tip for creating contoured surfaces and 3D profiles, and bull nose end mills, which feature a corner radius for a blend of flat bottom and rounded corner capabilities.

Specialized Milling Cutters

Beyond general-purpose tools, specialized milling cutters address unique machining challenges. These tools are engineered for specific geometries or material removal processes.

T-slot cutters are precision tools indispensable in metalworking and mechanical manufacturing. They specifically mill T-slots, which are crucial for part fixation and positioning across various industries. These slots find wide application in machine tool worktables, fixture systems, automated equipment, and structural connectors. Their benefits include high load capacity, ease of adjustment, and superior production efficiency. T-slot cutters create an undercut slot that extends below the surface of a previously milled groove, forming a T-shaped profile.

Thread milling cutters offer significant advantages over traditional tapping for creating threads. They provide greater flexibility and precision, especially in challenging materials or complex thread forms.

Factors	Thread Milling
Life span	Long-lasting (thousands of holes), especially when made from durable materials like carbide
Milling	Both internal and external threads
Flexibility	High — you can adjust the thread size through programming
Accuracy	High, offers more precise control over thread dimensions
Thread size	No size limitation
Thread quality	Produces higher quality threads with a better surface finish, especially in tough materials
Chips	Creates chips that are smaller and easier to manage
Applications	Custom and large threads (like pipe threads) and large holes, precision, thin-walled, asymmetric, or non-rotating parts, accurate threads with tight tolerances, right-hand and left-hand threads
Materials	Aluminum, stainless steel, titanium, high-temperature alloys, plastics, and composites
Cutting process	Carves out the threads by moving the tool in a spiral pattern
Internal threads process	A CNC machine guides the tool in a spiral, or corkscrew, pattern into the material
External threads process	A CNC machine guides the tool, moving it around the outside of the material

Thread milling offers virtually unlimited options for cutter sizes, readily available for various thread dimensions, without concerns about spindle torque. It is effective for harder materials like stainless steel, titanium, and high-strength alloys, as it avoids the high temperatures and stresses that can cause tool breakage and thread distortion with tapping. Thread milling also excels in brittle materials, preventing stripping or cracking. It is particularly effective for deep or blind holes where tapping can be impractical due to chip removal issues. Thread milling produces cleaner, more precise threads with uniform finishes and tighter tolerances. It also allows for the creation of multi-start threads, which traditional tapping cannot achieve.

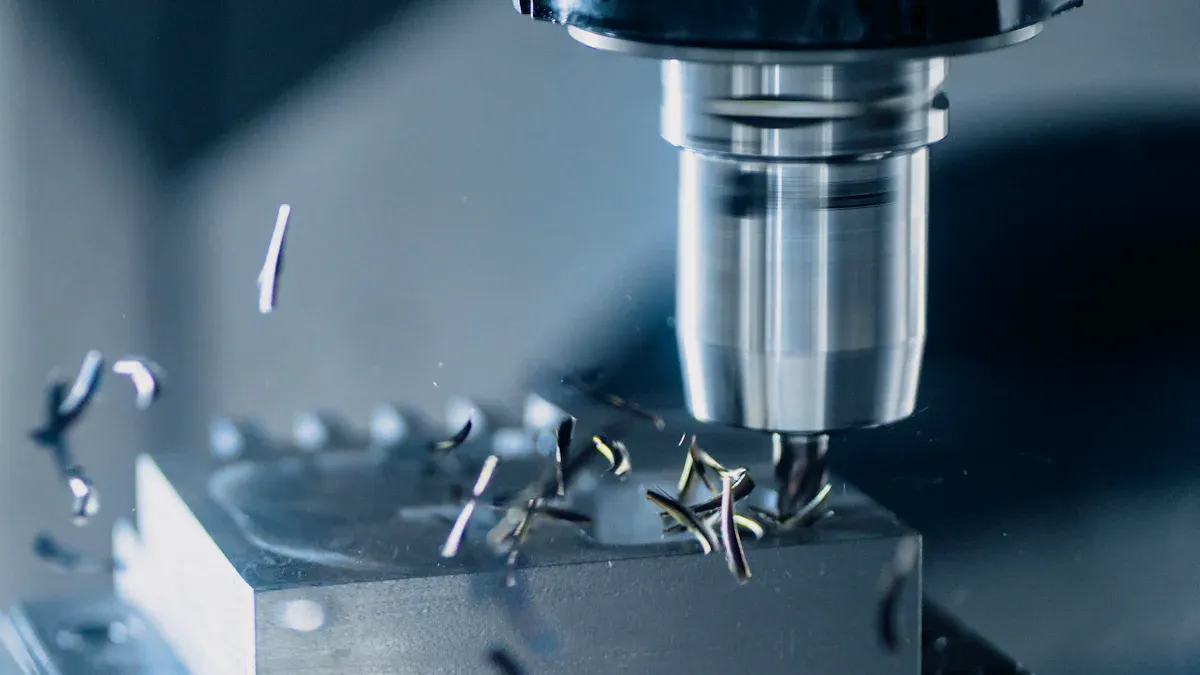

How Milling Cutters Work and Their Applications

The Mechanics of Milling Cutters

Milling cutters remove material through a complex interaction of forces and tool geometry. As the tool rotates and engages the workpiece, it exerts several forces. The tangential force (Ft) drives the actual cutting action. A radial force (Fr) acts perpendicular to the cutting direction, while an axial force (Fa) acts along the tool's axis. Approximately 70% of the total force is the tangential cutting force, which overcomes resistance to rotation. The geometry of the cutting edge significantly influences chip formation. A serrated cutting edge, for instance, can cause the chip to split, resulting in a larger measured chip thickness than calculated and a reduced chip length. The design of both inserts and solid cutting edges, including helical and serrated patterns, are critical for predicting chip thickness distribution.

Force Type	Description	Approximate Percentage of Total Force
Tangential Cutting Force	Overcomes resistance to rotation	70%
Feed Force		20%
Radial Force	Tends to push away the tool	10%

Conventional vs. Climb Milling with Milling Cutters

Milling operations primarily use two methods: conventional and climb milling. These methods differ in how the cutting tool engages the workpiece. In climb milling, the chip thickness begins at its maximum and progressively reduces. This process minimizes friction and heat. Conversely, conventional milling starts with the cutting edge having no thickness, and the chip gradually gains thickness as it engages the material. This can lead to rubbing instead of a clean cut. Climb milling directs the cutting force downward, while conventional milling acts upward. This difference impacts tool wear, with climb milling minimizing it due to the thinning chip.

Feature	Climb Milling	Conventional Milling
Chip Thickness	Starts thick, thins out	Starts thin, gradually thickens
Cutting Force	Directed downward	Acts upward
Tool Wear	Minimized due to thinning chip	Increased due to greater initial resistance

Practical Applications of Milling Cutters

Milling cutters find extensive use across various industries. In the aerospace sector, they are crucial for precision parts processing, including engine components, fuselage structures, and connectors. These tools handle complex contours and fine features, ensuring high precision. They optimize for materials like aluminum alloy, titanium alloy, and composite materials. For example, the Harvi Ultra 8X effectively pockets or profiles Ti-6Al-4V, achieving high metal removal rates. The automotive industry also heavily relies on milling cutters. Concave form milling cutters produce intricate convex features on components, ensuring high precision, tight tolerances, and excellent surface finishes.

Selecting the Right Milling Cutters for Your Project

Choosing the correct Milling Cutters for a project significantly impacts machining efficiency, part quality, and tool life. This selection process involves careful consideration of the workpiece material, the cutter's geometric design, and its protective coatings.

Material Considerations for Milling Cutters

The material of the workpiece dictates the necessary properties of the milling cutter's substrate. Machining high-hardness materials, such as hardened steel in the 60-70 HRC range, generates extreme thermal and mechanical stress. This environment necessitates advanced substrate materials like ultra-fine grain carbide. This material provides ultimate hardness and fracture resistance, preventing rapid edge degradation, micro-chipping, and softening of the tool material due to heat. The abrasive nature of hard materials also increases tool wear, making robust substrates crucial for maintaining precision and extending tool life. Additionally, specialized coatings like AlTiN apply to these substrates to form a thermal shield, directing heat away from the tool and preserving its structural integrity under continuous high-load conditions.

Softer materials, such as non-ferrous metals (ISO N), allow for high cutting speeds and longer tool life with inserts featuring sharp edges. This implies less stringent requirements for substrate hardness and heat resistance. The choice of cutting tool geometry, grade, and cutting data is influenced by the unique characteristics of each material, including alloying elements, heat treatment, and hardness. Workpiece materials are divided into six major groups (ISO P, M, K, N, S, H) with unique machinability properties. For instance, ISO H includes steels with a hardness between 45-65 HRC, which are difficult to machine, generate heat, and are very abrasive to the cutting edge.

Geometric Factors of Milling Cutters

The geometric design of a milling cutter profoundly influences its performance and stability during operation. The core diameter, the solid central part of a milling tool, is fundamental to its stiffness and resistance to bending. A larger core diameter enhances tool rigidity, making it less susceptible to deflection under cutting forces, especially for tools with long flutes where deflection can be amplified. Strategically increasing the core diameter improves stiffness, which benefits operations with high lateral forces or deep cuts.

Tool rigidity is crucial for minimizing deflection. Bending is directly influenced by overhang length and tool diameter; increasing tool reach reduces process stability. To optimize tool life, deflection should be kept below 0.001 inches, or even less for smaller tools. Reducing tool overhang significantly impacts deflection, with a 20% reduction in overhang length leading to a 50% reduction in deflection.

Consider these points for enhanced stability and reduced deflection:

• Select end mills with a larger core diameter for enhanced stability.
• Minimize the overhang from the spindle nose to the tool tip.
• Utilize stub length end mills whenever possible to reduce deflection.
• For 90° cutters, dominant radial forces cause deflection with long overhangs.
• Always use the shortest possible tool length.
• Vibration tendencies become more apparent when overhangs exceed four times the tool diameter.

In milling, both radial and axial rake angles are defined because each influences chip deviation and edge strength in different directions. These angles collectively impact overall machining outcomes such as chip formation, cutting forces, and surface finish. The axial rake angle influences chip flow, cutting-edge strength, and power consumption. Toolmakers can adjust this angle to reduce cutting force, allowing machines with less horsepower to be used more effectively. The radial rake angle, on the other hand, is critical for determining the sharpness and strength of the cutting edge.

Coating and Performance of Milling Cutters

Coatings significantly enhance the performance and longevity of milling cutters. Aluminum Titanium Nitride (AlTiN) coatings are harder than Titanium Aluminum Nitride (TiAlN), offering higher abrasive and heat resistance. This extends tool life and reduces cycles, particularly for machining aircraft and aerospace materials, nickel alloys, stainless steels, titanium alloys, cast iron, and carbon steels.

AlTiN coatings provide several key benefits:

• High toughness, low friction: Enhances efficiency and reliability in drilling processes.
• High heat resistance: Ensures consistent performance in high-temperature drilling scenarios.
• High Hardness: AlTiN coatings offer exceptional hardness, surpassing TiN, leading to superior wear resistance and extended tool sharpness.
• Excellent Thermal Stability: AlTiN maintains its hardness at elevated temperatures, making it ideal for high-speed machining where heat generation is a concern, allowing for faster cutting speeds without compromising tool life.
• Oxidation Resistance: AlTiN provides good resistance to oxidation, further extending tool life in environments where oxidation can degrade cutting performance.
• Provides excellent heat and oxidation resistance, remaining stable at operating temperatures up to 1,292°F (uncoated tools struggle around 572°F).
• Enables higher speeds and feeds when machining ferrous materials.
• Contributes to better tool life, especially in dry machining and for materials like titanium alloys, Inconel, stainless alloys, and cast iron.

Physical Vapor Deposition (PVD) and Chemical Vapor Deposition (CVD) are common coating processes that significantly increase tool life, reduce machining time, and improve finishes. These coatings protect carbide from early decarburization, allowing for increased execution speed, reduced downtime, and improved quality of worked surfaces due to a more consistent cut over time.

Feature	PVD Coating	CVD Coating
Adhesion	Good, but generally less than CVD	Superior due to high-temperature chemical bonding
Thickness	Thinner (typically 1-5 microns)	Thicker (up to 30 microns)
Density	Denser	Less uniform on complex geometries
Hardness	Harder and more wear resistant	Can allow lower cutting forces
Wear Resistance	Higher	Good, especially for abrasion
Temperature Resistance	About 750°C	Above 1000°C
Application	High-speed machining of aluminum and non-ferrous alloys; high precision non-ferrous work	Machining tough materials like titanium, nickel, and cobalt alloys; high abrasion resistance
Tool Life	Improves wear resistance and tool life	Improves tool life

---

Milling cutters are fundamental tools for precision material removal in manufacturing. They enable the creation of complex components. Understanding their diverse features and operational principles is crucial for effective machining. This knowledge allows for optimal performance. Proper selection ensures desired results across various applications.

FAQ

What is the primary function of a milling cutter?

A milling cutter is a rotary tool. It removes material from a workpiece. This process shapes raw materials into desired components.

What are the most common types of milling cutters?

End mills are very common. They include square end mills for flat surfaces and ball nose end mills for contoured shapes.

Why is material selection important for milling cutters?

Workpiece material dictates the cutter's properties. Harder materials require robust substrates and coatings. This ensures precision and extends tool life.
